| Home > Newbie in WiFi~~ |
| |
| Newbie in WiFi~~ |
| Want to use on a marina, need to cover an area approx 450m with angle of coverage 20-30 deg. Directional type | |
| A. Without the Router or Access point or PCMCIA Card |
| Solution 1. |  |
 |
Description | WIFI-Link No. | Q'ty | 2.4 Ghz USB Panel Antenna (U-Tenna II) 12dBi for 802.11b/g/n | WL-UTP-2450-12N | 1 | |
Description | WIFI-Link No. | Q'ty | 2.4 Ghz USB Grid Antenna (U-Tenna II) 19dBi for 802.11b/g/n | WL-UTG-2450-19N | 1 | |
Notice:
For maximum reception, please use power lead with Laptop
when using U-Tenna product. |
| |
|
| B. With RSMA type Router or Access point or WIFI card |

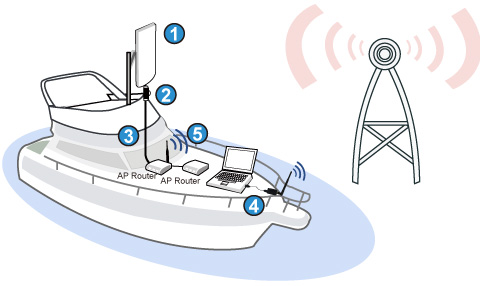

| Solution 1 - RSMA type | | |  |
 |
No. |
Description |
WIFI-Link No. |
Q'ty |
① |
2.4GHz PANEL 16 dBi Antenna
(with L bracket) |
WLP-2450-16-1 |
1 |
② |
3GHz Lightning Protector
N (M) to N (F) |
WL-LA-NP-NJ |
1 |
③ |
PIGTAIL for N male + RP SMA male +
LLC200 L=5m |
np-rsmap-200-5.0 |
1 |
④ |
1000mW USB adapter +2.4GHz DIPOLE 7dBi Antenna |
WL-USB-RSMA25-07 |
1 |
⑤ |
2.4GHz DIPOLE 9 dBi
(RP SMA male) |
WL-DA-9-SMA |
1 |
|
| |
| Solution2-RP TNC ype |
|
 |
No. |
Description |
WIFI-Link No. |
Q'ty |
① |
2.4GHz PANEL 16 dBi Antenna
(with L bracket) |
WLP-2450-16 |
1 |
② |
3GHz Lightning Protector
N (M) to N (F) |
WL-LA-NP-NJ |
1 |
③ |
PIGTAIL for N male +
RP TNC male +
LLC200 L=5m |
np-rtncp-200-5.0 |
1 |
④ |
1000mW USB adapter + 2.4GHz DIPOLE 7dBi Antenna |
WL-USB-RSMA-30NW07 |
1 |
⑤ |
2.4GHz DIPOLE 9 dBi
(RP TNC male) |
WL-DA-9-TNC |
1 |
|
| |
| |
| |
|
|
|
| |
